LabJaws offers the largest selection of Lab-Frame Kits, Lab-Lifts, Rods and Support Stands in the industry to hold glassware safely. Whether you’re looking for a standard lab-frame or a customizable set-up, we have options to fit any space or application. Select from 13 pre-configured lab-frame kits (connectors and feet included) to rods which can be purchased individually and combined with LabJaws accessories to build a customized frame.

Applications
Chromatography, Distillation, Titrations, Electrolysis, Chemistry, Research & Development, Quality Control, Ring Stands, Water Baths, Cleanroom Applications, Acid Fume Hood Applications

Display
N/A

Operation
Lab-frame kits include all components necessary to build a lab-frame

Communication
N/A

Construction
Nickel-plated zinc, stainless steel, fiberglass, aluminum, cast aluminum, anodized aluminum (Stainless steel is autoclavable and corrosion-resistant. Aluminum is lightweight yet strong. Cast iron with black enamel finish is chemical-resistant.)

Design Features N/A

FEATURES

• Providing Secure Support for Holding Glassware at Elevated Positions
• Corrosion-resistant frames and rods are available in stainless steel and aluminum. Stainless steel offers high chemical resistance and durability. Aluminum offers greater strength at a lighter weight.
• Thirteen lab-frame kit options are available - with four specifically designed to fit in fume hoods. You can also purchase rods and bases individually to meet your exact requirements
• Lab-lifts provide adjustable lifting platforms with exceptional strength and durability for holding small lab equipment such as glassware, hot plates and water baths at different heights.

Type	Holder
Material	Aluminum
Dimensions (HxLxW)	0 in -- 0.66 in (0 mm – 17 mm)
Adjustment Type	Thumbscrew
Connection Angle	Fixed 90°

Model	Description	Type	Material	Length	Width	Grip Range	Connection Angle	Adjustment Type	Size

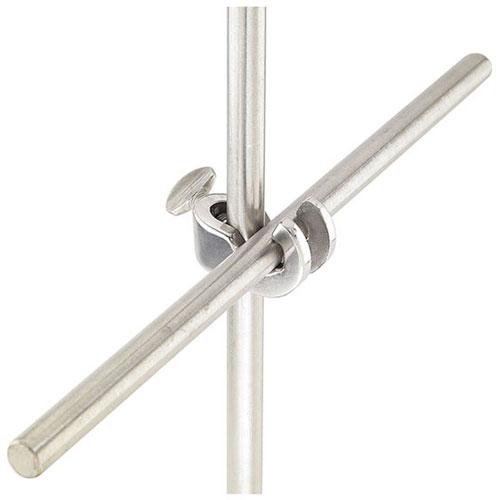

CLC-REGLRS 30392219	Clamp, Holder, Regular	Holder	Stainless Steel	1.90 in 48.30 mm	-	0.00–0.71 in 0–18 mm	Fixed 90°	Thumbscrew	Regular

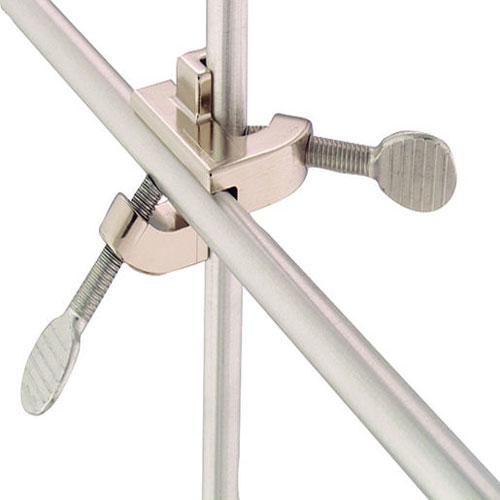

CLC-REGLRZ 30392197	Clamp, Holder, Regular	Holder	Nickel plated	1.90 in 48.30 mm	-	0.00–0.71 in 0–18 mm	Fixed 90°	Thumbscrew	Regular

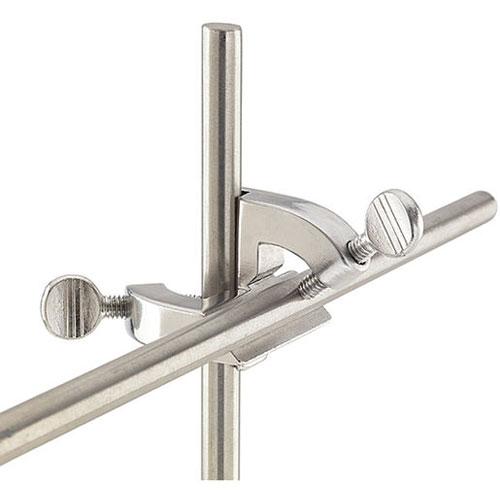

CLC-JUMBOS 30392357	Clamp, Holder, Jumbo	Holder	Stainless Steel	2.25 in 57.20 mm	-	0.00–0.83 in 0–21 mm	Fixed 90°	Thumbscrew	Jumbo

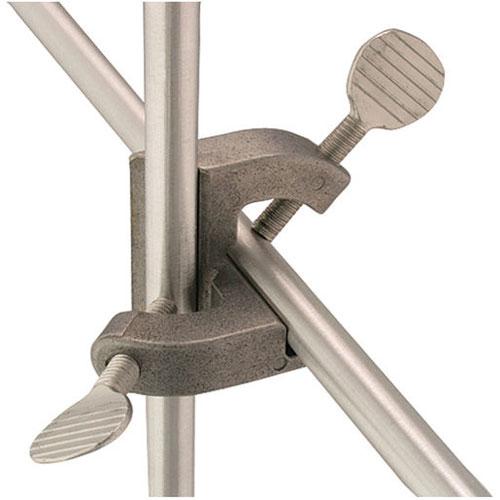

CLC-JUMBOA 30392196	Clamp, Holder, Jumbo	Holder	Aluminum	2.25 in 57.20 mm	-	0.00–0.83 in 0–21 mm	Fixed 90°	Thumbscrew	Jumbo
CLC-CLMPHA 30392195	Clamp, Holder	Holder	Aluminum	2.75 in 70.00 mm	-	0.00–0.66 in 0–17 mm	Fixed 90°	Thumbscrew	-

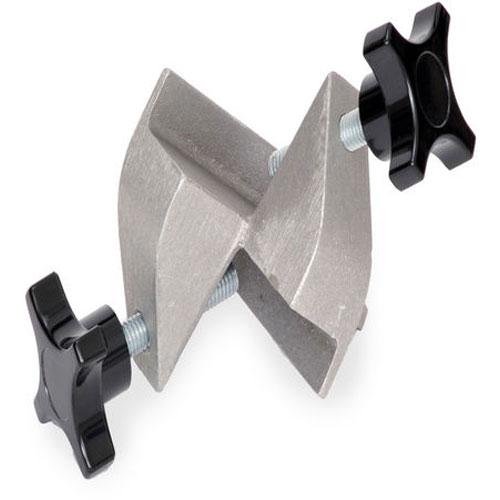

CLC-ULTRAA 30400045	Clamp, Holder, Ultra Clamp	Holder	Aluminum	4.00 in 102.00 mm	4.00 in 102.00 mm	0.24–0.95 in 6–24 mm	Fixed 90°	Oversized Knob	Heavy Duty

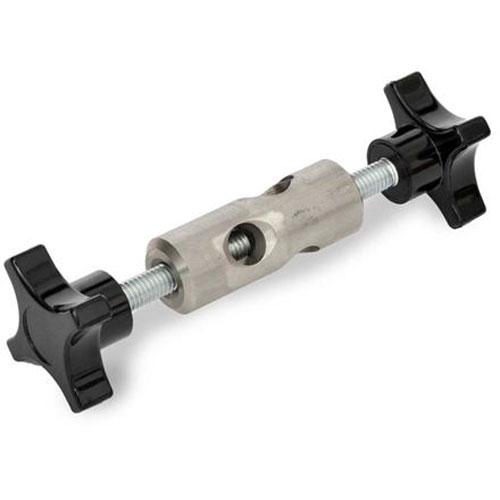

CLR-HOLDRS 30400043	Clamp, Holder, Ultra Clamp	Holder	Stainless Steel	-	-	-	Fixed 90°	Oversized Knob	-

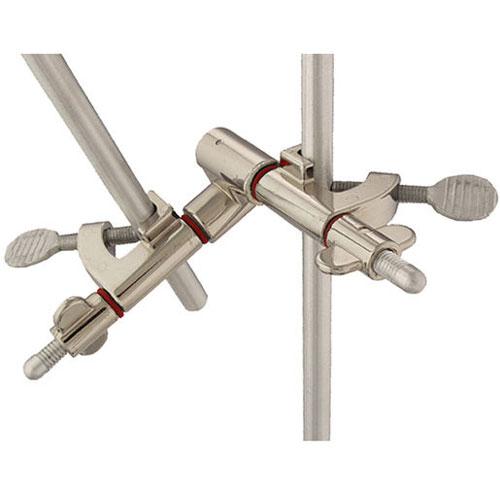

CLC-ALLPSZ 30392248	Clamp, Holder, Ultra Clamp	Holder	Nickel plated	-	-	0.00–0.75 in 0–19 mm	Variable 360°	Thumbscrew	-

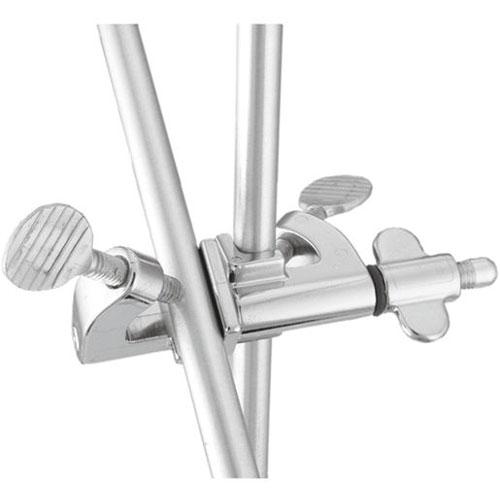

CLC-ALLPSZ 30392228	Clamp, Holder, Swivel	Holder	Stainless Steel	-	-	0.00–0.75 in 0–19 mm	Variable	Thumbscrew	-

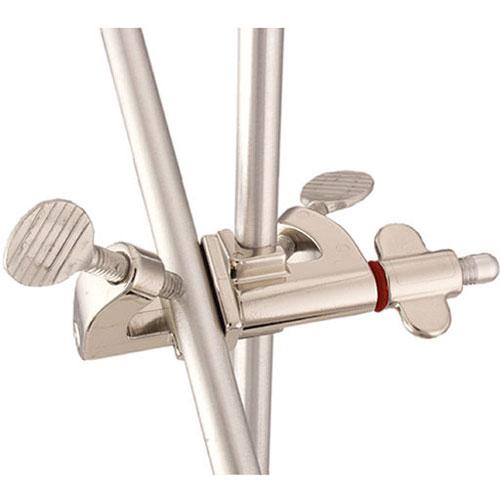

CLC-SWIVLZ 30392213	Nickel plated	Holder	Stainless Steel	-	-	0.00–0.75 in 0–19 mm	Variable	Thumbscrew	-
