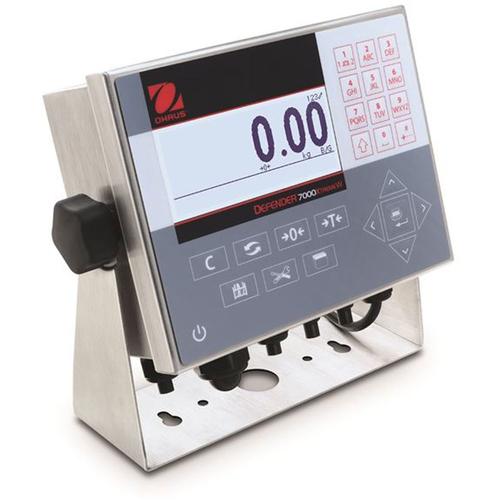

Ohaus T72XW Advanced Performance Stainless Steel Indicator with External Device Control Capabilities

Features

The OHAUS T72XW indicator provides the flexibility, performance and operation necessary for specific applications with connectivity and data output capabilities - including vehicle weighing, over/under checkweighing, animal weighing and counting. The 7000 series indicator has multiple functions, intuitive software, multiple connectivity options, and the durability to stand up to the wear-and-tear in industrial settings.

Standard Features Include:

High Resolution and Multi Load Cell Support for Higher Capacity Industrial Weighing— With a 50,000 displayed resolution and the ability to support up to 10 load cells, T72XW was designed for heavy-duty industrial applications.
Multiple Connectivity Interfaces Support Complex Applications—Two available option slots enable a wide range of connectivity interfaces. Control external devices using the discrete I/O interface and transfer data through the serial, USB or Ethernet ports.
Advanced Applications with Intuitive Navigation—T72XW is very easy to set up and navigate, a vivid graphic display with on-screen prompts and an alphanumeric keypad with designated keys for common functions such as Tare and ID information.
Customized Features Provide a User-Friendly Experience—Perform a range of functions such as customize print templates, customize and print inbound/outbound tickets for vehicles (in Temporary or Permanent Tare mode), and generate periodic reports.

Specifications

Model	T72XW
Capacity	Up to 998000 (t, kg, g or lb)
Maximum Displayed Resolution	1:50,000
Maximum Approved Resolution	NTEP 14-049 1:10,000 Measurement Canada AM-5943; 1:6,000 (EC, OIML)
Weighing Units	kg, lb, oz, lb-oz, g, ton, t
Weighing Modes	Animal Weighing, Parts Counting, Checkweighing
Display	Transflective graphic LCD with white backlight, 240 x 96 pixels
Under/Accept/Over indicators	3 Zones, up to 25 targets
Controls	8 function, 4 navigation, 12 alpha numeric membrane switches
Ingress Protection	IP66
Load Cell Excitation Voltage	10 VDCs
Load Cell Drive	Up to 10 × 350 ohm load cells
Load Cell Input Sensitivity	Up to 3 mV/V
Stabilization Time	Within 2 seconds
Auto-Zero Tracking	Off, 0.5d, 1d, 3d or 10d
Zeroing Range	+/-2% or +/-20% of capacity
Interfaces	RS232 (included), SD card (included), Ethernet (optional) , USB with Discrete I/O (optional), Second RS232/RS485 (optional)
Operating Temperature Range	14 °F to 104 °F / -10 °C to 40 °C
Main Power	100-240 V ~ 0.15 A 50/60 Hz internal power supply

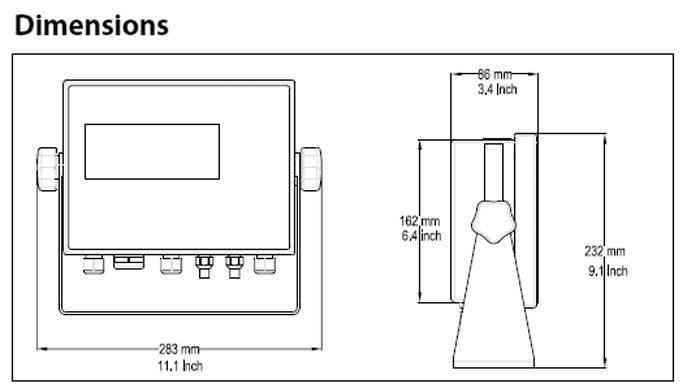

Housing dimensions (W x D x H)	11.1 x 3.4 x 9.1 in / 283 x 86 x 232 mm
Net weight	6.6 lb / 3 kg
Shipping weight	7.5 lb / 3.4 kg)
Shipping Dimensions	13W x 9.5D x 7H in / 324W x 240D x 187H mm

Additional Features
Check weighing lights with selectable operation and audible signal settings, sealed front panel, five operating languages (English, Spanish, French, German and Italian), selectable environmental and auto-print settings, stability indicator, overload/underload indicators

Approvals

Product Saftey: CAN/CSA C22.2 60950-1; UL 60950-1
Electromagnetic Compatibility: Canada ICES-003 Class A; FCC Part 15 Class A
Meterology: Canada Weights and Measures Regulations Class III/IIIHD (AM-5943); NIST Handbook 44 Class III/IIIL (14-049)

Options and Accessories Interface Options
Ethernet Kit, T72XW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30132163
USB with I/O kit, T72XW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30132164
COM2 Kit, T72XW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30132165
Mounting Accessories
Column Mount Kit, 35cm, stainless steel, T71. . . . . . . . . . 80500725
Column Mount Kit, 68cm, stainless steel, T71. . . . . . . . . . 80500726
Compatible with all existing columns for D31/D51/CKW
