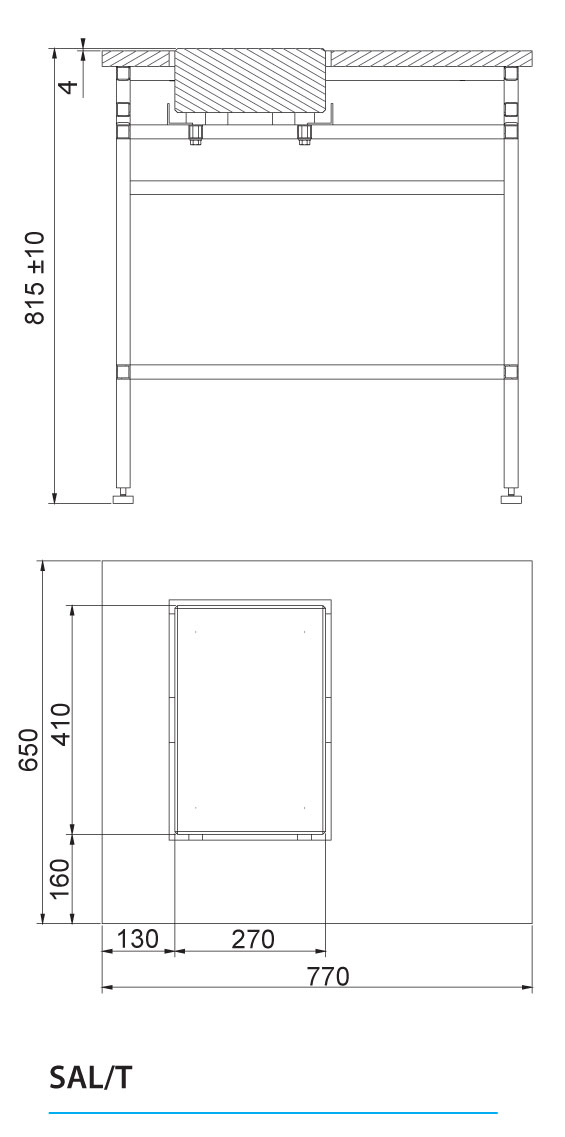

SAL/T Steel Antivibration Table for PA-04/H Automatic Feeder

The antivibration table has been designed to eliminate ground vibrations during the operation of automatic feeder. It consists of two separate constructions: the outer, designed to isolate the working part, and the inner. The working part includes a table and a stone separated by a vibration damper. The table features a stone top (located on the left side of the table) and adjustable feet with protective rubber tips, facilitating table levelling on uneven surfaces.
The structure of the SAL/T version is made of powder-coated steel, and the top is made of HPL board..

Model	SAL/C WX-001-0076	SAL/C/PLUS WX-001-0156	SAL/H WX-001-0077	SAL/H/PLUS WX-001-0155	SAL/T (for PA-04/H) WL-001-0107	SAP/C WX-004-0145	SAP/H WX-004-0146
Title	SAL/C Laboratory Antivibration Table	SAL/C/PLUS Antivibration Table for PLUS Series Balances	SAL/H Stainless Steel Laboratory Antivibration Table	SAL/H/PLUS Stainless Steel Laboratory Antivibration Table for PLUS Series Balances	SAL/T Steel Antivibration Table for PA-04/H Automatic Feeder	SAP/C Industrial Antivibration Table	SAP/H Stainless Steel Industrial Antivibration Table
Construction	mild steel St3S	mild steel St3S	Stainless steel AISI304	Stainless steel AISI304	mild steel St3S	mild steel St3S	Stainless steel AISI304
Load-bearing capacity	40 kg	40 kg	40 kg	40 kg	40 kg	40 kg	40 kg
Packaging dimensions	820×711×816 mm	820×711×816 mm	820×711×816 mm	820×711×816 mm	820×681×816 mm	820×681×816 mm	820×681×816 mm
Net weight	61 kg	68 kg (table 28 kg + stone 40 kg)	61 kg	61 kg	55 kg	55 kg	55 kg
Gross weight	72.5 kg	72.5 kg	65-70 kg	77 kg	68.5 kg	72 kg	72.5 kg
Length	770 mm	770 mm	770 mm	770 mm	770 mm	770 mm	770 mm
Width	680 mm	680 mm	680 mm	680 mm	680 mm	650 mm	770 mm
Height	815+10 mm	815+10 mm	815+10 mm	815+10 mm	815+10 mm	815+10 mm	770 mm
