Features
Defender 5000 can meet the needs of demanding industrial operations.
- High-Visibility LCD Display with bright white LED backlight and fast display stable weight within 2 seconds
- Internal Slot for Capacity Label Protects label from the effects of moisture and external environments
- Reversible Rear Housing Cables can exit above (table or front scale mounting) or below (wall or bench scale mounting) for convenient mounting. Front scale mounting with available accessory. Internal structural ribs provide strength and minimize flexing.
- One-Key, Multiple Mode Selection Counting, Dynamic Weighing, Display Hold, Percent Weighing and Checkweighing
- Stay Connected Built in RS232 bi-directional interface and external input, optional RS422/485, optional second RS232 and optional AC or DC relay
- Plug-in Load Cell Connector Allows for simple connection to Defender bases or directly to terminal block
- Durable Base Frame Construction Stainless steel pans and painted steel form-and-weld frames (R, L bases) provide maximum durability, rigidity and structural integrity. Load-unload cycle tested to ensure long-term performance
- Fully Adjustable Feet Four rugged, adjustable feet help prevent slippage on wet or uneven surfaces
- Painted Steel Columns Available in both short and tall lengths
- Universal Switching Power Supply 100-240 VAC with AC line cord; no need for an external AC adapter
- Included Table/Wall Mount Bracket With large ergonomic adjustable knobs to maximize viewing angles. A ratchet-type angle adjustment with metal inserts ensure that viewing angles are set securely, and lasts a long time even with frequent adjustments
- Simple Plug-In Battery Installation Use six C- alkaline batteries or the optional NiMH battery
- 3-Color LED Checkweigh Indication with configurable beeper alert
Standard Features Include:
- Painted steel bases with ABS indicator
- 10,000-12,500d default resolution for square bases, 5,000-7,500d default resolution for rectangular bases
- Quick display of results using large LCD with high-contrast white backlight
- Temporary display of 10x readability in weighing mode using quick key press
- Easy to operate with 4-key membrane keypad with raised tactile keys
- Weighs in one or more units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit
- Multiple weighing modes including Counting, Percent Weighing, Dynamic/Animal Weighing,Checkweighing, and Display Hold.
- Internal power supply with universal line cord or 6 “C” batteries (80 hour battery life) – optional NiMH internal rechargeable power pack available
- Includes RS232 interface with GMP/GLP data output including date and time
- Base and indicator connected using quick connect plug
- Optional interfaces include DC relay control kit, AC relay control kit,2nd RS232 and RS485/422
The Defender 5000 Offers Multiple Features and Easy Configuration:
To meet different operational needs, the Defender 5000 includes a suite of configurable software:
- Counting mode for packaging and inventory control, enabling counting into a container or out of a container for bulk operations. Supports a maximum counting resolution to 1:300,000 (minimum APW equal to 0.1d), selectable auto-optimization of average piece weight (APW). APW data can be displayed at any time using a quick key press.
- Percent Weighing mode for formulation and mixing applications, with display of reference weight with quick key press.
- Dynamic/Animal Weighing with selectable weigh times from 0-60 seconds.
- Checkweighing function for packaging and weight checking, with display of results using LCD display and red/yellow/green LEDs. Audible beeper can be configured to prompt when weight is within range, under, over, or under or over range. Target weight values can be displayed at any time using a quick key press.
- Display Hold mode for weighing large packages holds last stable weight on display until cleared
- The Defender 5000 weighs in one or more user-selectable units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit
- Supports GMP/GLP data output with date, time user ID, project ID and scale ID. The Defender 5000 features selectable print options for data and print format
- To limit operator access to functions, the Defender 5000 offers both software lockouts for menu items as well as individual key functions.
Features
T51P: ABS plastic housing with internal rib reinforcements, reversible rear cover, backlit LCD weight display,
checkweighing indication (green, yellow, red), membrane keypad with raised tactile keys, built-in bi-directional
RS232 with manual/continuous/interval printing, external tare input, hardware configuration lockout switch,
internal switching power supply with line cord and battery power using 6 “C” cell batteries.
Other Features
Zero point calibration, calibration test, span or linear calibration, selectable auto-zero tracking range, selectable
stability range, selectable averaging level, selectable LCD backlight, selectable auto shutoff, retain zero weight data
after power-off, Geo gravity adjustment, selectable key beep, key function lock, menu lock, selectable power-on
and calibration unit, battery status display, display of gross/net weight, indication of stability, center of zero, overand
underweight, overload and underload conditions. Configuration menus for PRINT1, PRINT2, COM1, COM2,
and I/O.
Compliance
• Safety and EMC: cULus 2005/95/EC low voltage directive: EN60950-1:2001, FCC Part 15 Class A 2004/108/EC
Compliant to Directive 202/96/EC on waste electrical and electronic equipment (WEEE)
• Quality: OHAUS quality management system registered to ISO 9001:2000

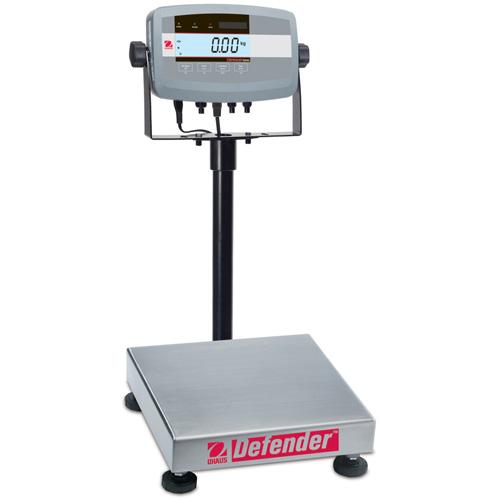

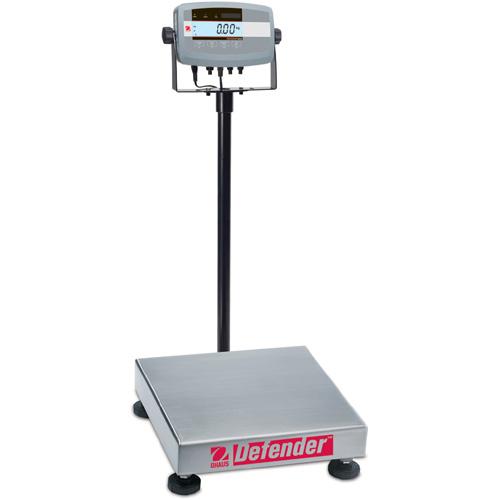

Bench Square Scales
Model Number |
D51P-10Q-R1 |
D51P-25Q-R1 |
D51P-50Q-L2 |
D51P-100Q-L2 |
D51P-250Q-X2 |
Capacity x Readability |
25 lb x 0.002 lb |
50 lb x 0.005 lb |
100 lb x 0.01 lb |
250 lb x 0.02 lb |
500 lb x 0.05 lb |
| 400 oz x 0.05 oz |
800 oz x 0.1 oz |
1600 oz x 0.2 oz |
4000 oz x .5 oz |
8000 oz x 1 oz |
| 25 lb : 0.05 oz |
50 lb x 0.1 oz |
160 lb : 0.2 oz |
250 lb : .5 oz |
500 lb : 1 oz |
| 10 kg x 0.001 kg |
25 kg x 0.002 kg |
50 kg x 0.005 kg |
100 kg x 0.01 kg |
250 kg x 0.02 kg |
| 10000 g x 1 g |
25000 g x 2 g |
50000 g x 5 g |
100000 g x 10 g |
250000 g x 20 g |
Maximum Displayed Resolution |
1:12500 |
1:12500 |
1:10000 |
1:12500 |
1:12500 |
Scale Dimensions
(W x H1 x D1 x D2) |
12 x 3.7 x 12 x 20.8 in
305 x 95 x 305 x 530 mm |
18 x 4.5 x 18 x 26.8 in
457 x 115 x 457 x 680 mm |
24 x 5.4 x 24 x 32.8 in
610 x 137 x 610 x 833 mm
|
Shipping Dimensions
(L x W x H) |
19.3 x 16.1 x 17.3 in
490 x 410 x 440 mm |
31.2 x 23.6 x 9.5 in
810 x 600 x 240 mm |
39.4 x 29.9 x 9.8 in
1000 x 760 x 250 mm
|
| Net Weight |
32.4 lb / 14.7 kg |
66.6 lb / 30.2 kg |
83.8 lb / 38.0 kg |
| Shipping Weight |
37.7 lb / 17.1 kg |
71.4 lb / 32.4 kg |
97.9 lb / 44.4 kg |
| Column |
13.8 in / 350 mm painted steel |
26.8 in / 680 mm painted steel |
| Indicator Model |
T51P |
| Construction |
ABS plastic indicator, stainless steel removable weighing platform, painted steel column and base construction, aluminum loadcell |
| Safe Overload Capacity |
150% of maximum capacity |
| Weighing Units |
lb, oz, lb:oz, kg, g, custom unit |
| Modes |
Static Weighing, Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display Hold |
| Display |
1 in / 25mm high 6-digit, 7-segment bright white backlit LCD |
| Keyboard |
4-button membrane switch |
| Protection |
Dry use for scale, IP67 for loadcell |
| Stabilization Time |
Within 2 seconds |
| Auto-zero Tracking |
Off, 0.5, 1 or 3 d |
| Zeroing Range |
2% or 100% of capacity |
| Calibration Span |
1kg or 1lb to 100% of capacity / 3-point linearity (0 - 50% – 100% fixed) |
| Power |
100-240 VAC / 50-60Hz internal universal power supply, 6 ‘C’ cell batteries (not supplied) with 80 hour life |
| Interface |
RS232 and external input |
| Operating Temperature Range |
14°F to 104°F / -10°C to 40°C |
Low-Profile Rectangular Scales
Model Number |
D51P-15H-R1 |
D51P-30H-R1 |
D51P-60H-R1 |
D51P-60H-L2 |
D51P-100H-L2 |
D51P-150H-X2 |
D51P-300H-X2 |
Capacity x Readability |
30lb x 0.005lb |
60lb x 0.01lb |
150lb x 0.02lb |
250lb x 0.05lb |
300lb x 0.05lb |
600lb x 0.1lb |
| 480oz x 0.1oz |
960oz x 0.2oz |
2400oz x 0.5oz |
4000oz x 1oz |
4800oz x 1oz |
9600oz x 2oz |
| 30lb : 0.1oz |
60lb x 0.2oz |
160lb : 0.5oz |
250lb : 1oz |
300lb : 1oz |
600lb : 2oz |
| 15kg x 0.002kg |
30kg x 0.005kg |
60kg x 0.01kg |
100kg x 0.02kg |
150kg x 0.02kg |
300kg x 0.05kg |
| 15000g x 2g |
30000g x 5g |
60000g x 10g |
100000g x 20g |
150000g x 20g |
300000g x 50g |
Maximum Displayed Resolution |
1:7500 |
1:60000 |
1:7500 |
1:5000 |
1:7500 |
1:6000 |
Scale Dimensions
(W x H1 x D1 x D2) |
12 x 3.7 x 14 x 22.8 in
305 x 95 x 355 x 580 mm |
15.7 x 4.1 x 19.7 x 28.5 in
400 x 105 x 500 x 725 mm |
16.5 x 4.9 x 21.7 x 30.5 in
420 x 125 x 550 x 775 mm
|
Shipping Dimensions
(L x W x H) |
19.3 x 16.1 x 17.3 in
490 x 410 x 440 mm |
29.1 x 27.2 x 9.1 in
740 x 690 x 230 mm |
29.5 x 30 x 9.1 in
750 x 710 x 230 mm
|
| Net Weight |
25.3 lb / 11.5 kg |
49.1 lb / 22.3 kg |
61.1 lb / 27.7 kg |
| Shipping Weight |
30.2 lb / 13.7 kg |
56.4 lb / 25.6 kg |
67.7 lb / 30.7 kg |
| Column |
13.8 in / 350 mm painted steel |
26.8 in / 680 mm painted steel |
| Indicator Model |
T51P |
| Construction |
ABS plastic indicator, stainless steel removable weighing platform, painted steel column and base construction, aluminum loadcell |
| Safe Overload Capacity |
150% of maximum capacity |
| Weighing Units |
lb, oz, lb:oz, kg, g, custom unit |
| Modes |
Static Weighing, Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display Hold |
| Display |
1 in / 25mm high 6-digit, 7-segment bright white backlit LCD |
| Keyboard |
4-button membrane switch |
| Protection |
Dry use for scale, IP67 for loadcell |
| Stabilization Time |
Within 2 seconds |
| Auto-zero Tracking |
Off, 0.5, 1 or 3 d |
| Zeroing Range |
2% or 100% of capacity |
| Calibration Span |
1 kg or 1lb to 100% of capacity / 3-point linearity (0 - 50% – 100% fixed) |
| Power |
100-240 VAC / 50-60Hz internal universal power supply, 6 ‘C’ cell batteries (not supplied) with 80 hour life |
| Interface |
RS232 and external input |
| Operating Temperature Range |
14°F to 104°F / -10°C to 40°C |
