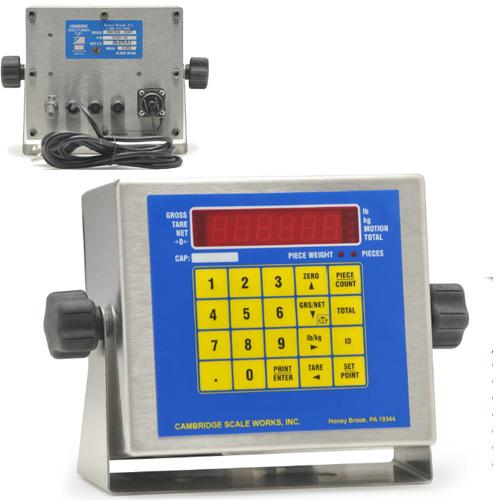

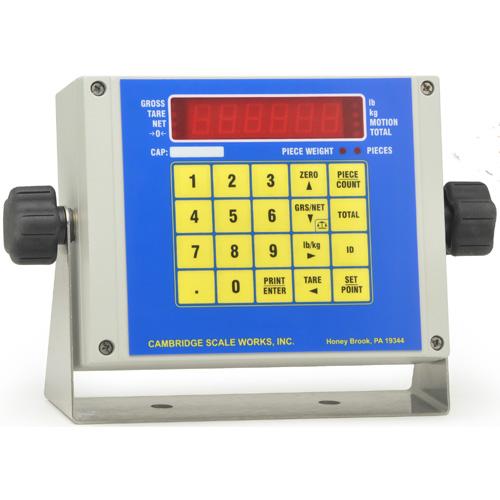

Cambridge CSW-20AT LED Indicator Legal for Trade with Full Numeric Keypad

Cambridge Scale
Cambridge CSW-20AT & CSW-20AT-B & SSCSW-20AT & SSCSW-20AT-B Digital Weight Indicators Legal for Trade, Full Numeric Keypad and two RS-232 more ...
Scales > Indicators & Remote Displays > Indicators & Remote Displays
Cambridge CSW-20AT LED Indicator Legal for Trade with Full Numeric Keypad

Specifications Chart



Download PDF
Cambridge CSW-20AT LED Indicator Legal for Trade with Full Numeric Keypad

Price: $598.50


In Stock - Ships within 24 hours

View Features

Cambridge Scale
SKU: CSW-20AT

Features

Standard Features Include
  • Die Cast Aluminum Enclosure
  • Stainless Steel Swivel Stand
  • 6-Digit .56” Red LED Display
  • 9-Pin Connection for Signal & communications Ports
  • No Solder Strain Relief Connections
  • Red LED Annunciators
  • Full Numeric Keypad
  • 1 to 5 Points of Linearization
  • Span Adjustment at Increasing or Decreasing Weights
  • Keypad Configuration & Calibration with Audit Trail
  • Front Panel Lock Out
  • Keypad / Auto Tare
  • Auto Zero Tracking
  • Adjustable Motion Detecting
  • Adjustable Digital Filtering
  • Time & Date
  • (2) RS-232 Ports
  • Print Configuration
  • Scale ID Entry (30 Alpha Numeric)
  • Weight Totalization (99 Weights)
  • ID# Entry (20 Digits)
  • Piece Counting
  • AC Adapter
  • Selectable: NTEP 5,000 Divisions NON-NTEP 20,000 Divisions
Applications:
  • Floor Scales
  • Bench Scales
  • Hopper Scales
  • Tank Scales
  • Fork Lift Scales
  • Counting Scales
  • General Purpose Weighing
Optional Features for CSW-20AT:
  • 110 VAC Dry Contact Set Point
  • RFL-Radio Frequency Link
  • Bar Code Scanner (Pen or Laser)
  • WiFi Transmitter Connection
  • Ethernet Connection
  • Scale Warning System
  • WI-CELL®-LT wireless communication from carriage to indicator now available

Dimensions
X:
8.50   Y: 7.00   Z: 3.00
Weight: 7.00 lb
1 Year Manufacture Warranty
Other Cambridge Scale CSW-20AT Indicators with Full Numeric Keypad
Cambridge CSW-20AT LED Indicator Legal for Trade with Full Numeric Keypad
Cambridge CSW-20AT
LED Indicator Legal for Trade with Full Numeric Keypad

$598.50

You are viewing this product

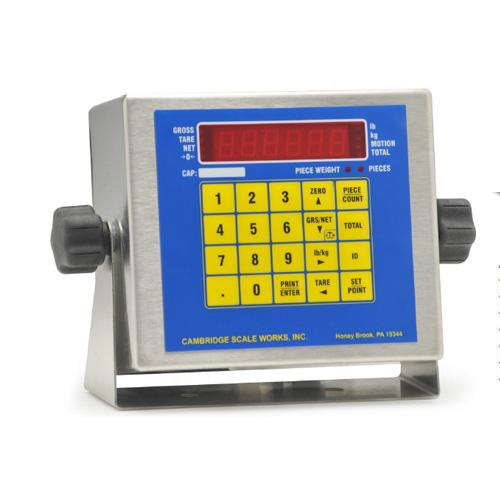

Cambridge SSCSW-20AT LED Indicator Stainless Steel Legal for Trade with Full Numeric Keypad
Cambridge SSCSW-20AT
LED Indicator Stainless Steel Legal for Trade with Full Numeric Keypad

$787.50
Cambridge SSCSW-20AT-B LED Indicator Stainless Steel Legal for Trade with Battery and Full Numeric Keypad
Cambridge SSCSW-20AT-B
LED Indicator Stainless Steel Legal for Trade with Battery and Full Numeric Keypad

$895.50

Specifications

Model CSW-20AT CSW-20AT-B SSCSW-20AT SSCSW-20AT-B
Power 120 VAC Adapter / 12 VDC ±10% 7.4 VDC 2600 mAH* Battery / 120 VAC 120 VAC Adapter / 12 VDC ±10% 7.4 VDC 2600 mAH* Battery / 120 VAC
Battery Operated NO YES NO YES
NON-NTEP Resolution 20,000 Division
Legal for Trade NTEP #06-070A1
Measurement Canada #AM-5778C
NTEP Resolution 5000 Division
Humidity 0-90% Non-condensing
Dimensions 7" x 5.5" x 3" without Stand, +1 inch with Stand 7" x 6" x 3" without Stand, +1 inch with Stand
Enclosure Die Cast Aliminum 304 Stainless Steel Nema 4X
Display High Efficient, Bright (Adjustable) LED—6 Digits—0.56" High
Input 0-15mv
Temperature 10¨ to +40¨ Celsius
Linearity 0.001% of Full Scale
Accuracy 0.001% of Full Scale
Load Cell Supply 5VDC at 150ma (8 each 350 ohm load cells)
Battery Oprating Time - (1) 350 OHM Cell - 22hrs
(4) 350 OHM Cell - 20hrs
(8) 350 OHM Cell - 14hrs
- (1) 350 OHM Cell - 22hrs
(4) 350 OHM Cell - 20hrs
(8) 350 OHM Cell - 14hrs
Ports 2 x RS-232
Country of Origin USA
