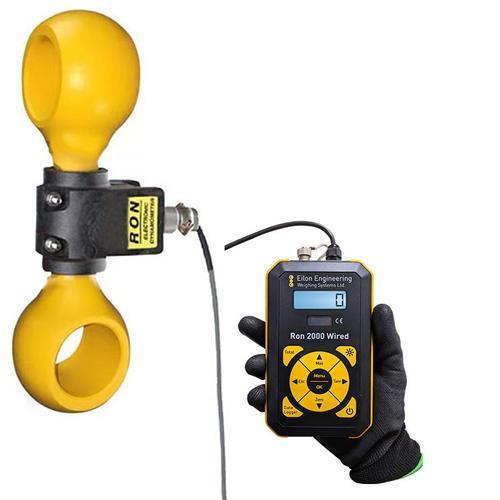

The highly portable Ron 2000 is an extremely small and lightweight wired dynamometer especially suited for low headroom or applications requiring high portability.

Featuring extremely long battery life , the Ron 2000 can operate up to 2000 hours on AA disposable batteries.

Made from aerospace steel, the Ron 2000 includes fatigue rated load cells for increased safety.

Unique in its design, the Ron 2000 features 90 degrees between shackle holes for increasing safety and accuracy by reducing bending of the load cell.

The Ron 2000 features high accuracy (0.1% of full scale).

Often used in offshore, wind turbines maintenance and other heavy industries.

Its durable and shock absorbing design makes it especially suitable for harsh conditions.

The Ron 2000 is available with advanced options like data loggers, serial/USB outputs or wired/wireless communication with PCs, printers and additional displays.

• warranty: 5 years
• Portable: Lightweight and small. Available with Pelican™ carrying case.
• Highly Accurate: ± 0.1% of full range - important for early overload detection.
• Excellent battery life: Up to 2000 Hours (2x AA batteries)
• Quality Materials: Exclusive use of high strength aerospace quality steel for load cell bodies
• Meets Standards: All Eilon Engineering load cells are Fatigue Rated according to ASME BTH-1-2017, ASME B30.26 and IEC 61508.
• Robust: Heavy duty designs with shock absorbing mechanisms.
• Unique: Shackle holes offset 90 degrees reduce external moments for greater safety and accuracy.
>Minimal Headroom loss: Smallest on the market - important for indoor applications.
• Advanced options: Auto/Manual Data Logger, RS232, Additional Displays.
• Short delivery time: In most cases 48-72 hours.
• More than 40 years in the market with repeat customers such as NASA, Boeing, Cirque du Soleil, Disney, GE, Lockheed Martin, other Fortune 500 companies, as well as numerous small businesses.

Safety factor: 5:1
Accuracy: 0.1% of full range.
Calibration: User calibration. Initial factory calibration, fully traceable (certified).
Load Cell Material: high-strength, aerospace quality, alloy steel, polyurethane coated.
Proof Load: Each system proof-loaded to 200% of capacity (certified) up to a test force of 400t.
Display: 6 digits, ½" (12mm) liquid crystal display. Overload warnings (100%/130%), low battery indication, Gross/Net. Refresh rate 1Hz.
Sampling Rate: 200 per second.
Functions: Zero, Tare, Battery level indication, Low battery warning, Max. (peak hold).
Units: User selectable units (metric tons, short tons, kgs., Ibs., Newtons, Deca-Newtons, Kilo-Newtons.
Indicator/Load Cell Housing: High quality ABS.
Temperature Range:
Load cell: -15°F to +175°F (-25°C to +80°C)
Indicator: -4°F to +158°F (-20°C to +70°C)
Environmental: IP65 (Optional IP67 Load Cell).


OPTIONS - Please Call 718-336-5900 for more Info

• Optional Backlight
• 1 or 2 user-adjustable set points
• Additional 0.5"/12mm LCD display with cable connection to indicator or wireless
• Additional 1"/25mm LCD display with cable connection to indicator or wireless
• Additional 2"/50mm LCD display with cable connection to indicator or wireless
• Additional 5"/125mm LED display with cable connection to indicator or wireless
• Additional extension cable in 15ft/5m increments
• Analog output: 0 to 3V
• Analog output: 4 to 20 mA
• Robust sealed carrying case: Pelican or equivalent.
• Dampened display for unstable load
• Automatic/Manual Data Logger - Up to 50,000 measurements
• IP 67 load cell with special off-shore capability
• Number of measurements per second: 1, 2, 3, factory set
• Real-time clock: date, hour, minute, second adds time stamp to RS-232 output
• Rechargeable batteries with external charger
• Rope falls multiplier, user selectable
• RS-232 - continuous or on demand data output, user-selectable
• RS-485 - continuous or on demand data output, user-selectable
• Totalizer
• Totalizer with Data Logging
• Wireless communication to additional display or PC
• USB

Model	Capacity in Metric Tons	Capacity x Readability	Type	Weight	Matching anchor shackle size	Carrying Case	Cable length
Ron2000S005	0.5t	1000 x 0.2 lb	Wired	6.6 LB	1/2 in- 7/16 in - 3/8 in	Optional	16ft / 5m
Ron2000S01	1t	2000 x 0.5 lb	Wired	6.6 LB	1/2 in- 7/16 in - 3/8 in	Optional	16ft / 5m
Ron2000S02	2t	4000 x 1 lb	Wired	6.6 LB	1/2 in- 7/16 in - 3/8 in	Optional	16ft / 5m
Ron2000S03	3t	6000 x 1 lb	Wired	6.6 LB	5/8 in - 3/4 in	Optional	16ft / 5m
Ron2000S05	5t	10000 x 2 lb	Wired	8.8 LB	3/4 in - 5/8 in	Optional	16ft / 5m
Ron2000S10	10t	20000 x 5 lb	Wired	8.8 LB	1 1/4 in- 1 1/8 in - 1 in	Optional	16ft / 5m
Ron2000S12	12.5t	25000 x 5 lb	Wired	8.8 LB	1 1/4 in- 1 1/8 in - 1 in	Optional	16ft / 5m
Ron2000S15	15t	30000 x 5 lb	Wired	13.2 LB	1 3/8 in - 1 1/4 in - 1 1/8 in	Optional	16ft / 5m
Ron2000S20	20t	40000 x 10 lb	Wired	13.2 LB	1 3/8 in	Optional	16ft / 5m
Ron2000S25	25t	50000 x 10 lb	Wired	17.6 LB	1 1/2 in	Optional	16ft / 5m
Ron2000S30	30t	60000 x 10 lb	Wired	17.6 LB	1 1/2 in	Optional	16ft / 5m
Ron2000S40	40t	80000 x 20 lb	Wired	28.6 LB	1 in - 1 3/4 in	Optional	32ft / 10m
Ron2000S55	55t	110000 x 20 lb	Wired	28.6 LB	2 in	Optional	32ft / 10m
Ron2000S85	85t	170000 x 50 lb	Wired	48.4 LB	2 1/2 in	Included	32ft / 10m
Ron2000S100	100t	200000 x 50 lb	Wired	72.6 LB	Widebody 125t	Included	49ft / 15m
Ron2000S125	125t	250000 x 50 lb	Wired	77 LB	Widebody 125t	Included	49ft / 15m
Ron2000S150	150t	300000 x 50 lb	Wired	151.8 LB	Widebody 200t	Included	49ft / 15m
Ron2000S200	200t	400000 x 100 lb	Wired	151.8 LB	Widebody 200t	Included	49ft / 15m
Ron2000S250	250t	500000 x 100 lb	Wired	330 LB	Widebody 250t or 300t	Included	49ft / 15m
Ron2000S300	300t	600000 x 100 lb	Wired	330 LB	Widebody 300t	Included	49ft / 15m

Other Eilon Engineering Ron 2000S Wired Dynamometer for Shackles with 0.5 inch Display

---

Ron2000S01 1t Wired Dynamometer for Shackles 2000 x 0.5 lb $2,083.49	Ron2000S005 0.5t Wired Dynamometer for Shackles 1000 x 0.2 lb $2,159.14	Ron2000S02 2t Wired Dynamometer for Shackles 4000 x 1 lb $2,168.93 You are viewing this product	Ron2000S03 3t Wired Dynamometer for Shackles 6000 x 1 lb $2,176.05	Ron2000S05 5t Wired Dynamometer for Shackles 10000 x 2 lb $2,188.51
Ron2000S10 10t Wired Dynamometer for Shackles 20000 x 5 lb $2,278.40	Ron2000S12 12.5t Wired Dynamometer for Shackles 25000 x 5 lb $2,288.19	Ron2000S15 15t Wired Dynamometer for Shackles 30000 x 5 lb $2,354.05	Ron2000S20 20t Wired Dynamometer for Shackles 40000 x 10 lb $2,370.07	Ron2000S25 25t Wired Dynamometer for Shackles 50000 x 10 lb $2,387.87
Ron2000S30 30t Wired Dynamometer for Shackles 60000 x 10 lb $2,410.12	Ron2000S40 40t Wired Dynamometer for Shackles 80000 x 20 lb $2,668.22	Ron2000S55 55t Wired Dynamometer for Shackles 110000 x 20 lb $2,882.71	Ron2000S85 85t Wired Dynamometer for Shackles 170000 x 50 lb $3,972.96	Ron2000S100 100t Wired Dynamometer for Shackles 200000 x 50 lb $6,594.01
Ron2000S125 125t Wired Dynamometer for Shackles 250000 x 50 lb $6,661.65	Ron2000S150 150t Wired Dynamometer for Shackles 300000 x 50 lb $8,642.79	Ron2000S200 200t Wired Dynamometer for Shackles 400000 x 100 lb $11,889.51	Ron2000S250 250t Wired Dynamometer for Shackles 500000 x 100 lb $12,327.39	Ron2000S300 300t Wired Dynamometer for Shackles 600000 x 100 lb $17,346.10
