Low-Profile, Lightweight, Digital, Self-Contained Wheel Load Scale! This scale is designed to maximize legal payloads with concern for violations and reduction of maintenance due to overload stress on equipment. more ... |
| Scales > Industrial Scales > Digital Platform Scales | ||||||
|
||||||
OverviewLow-Profile, Lightweight, Digital, Self-Contained Wheel Load Scale! This scale is designed to maximize legal payloads with concern for violations and reduction of maintenance due to overload stress on equipment. This Item Contains the following items
SKU: 170001-R |
||||||

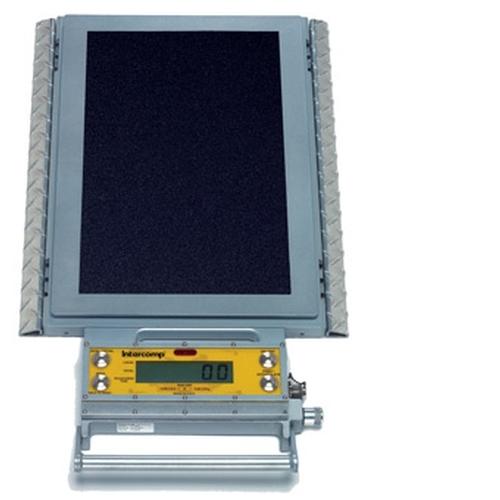

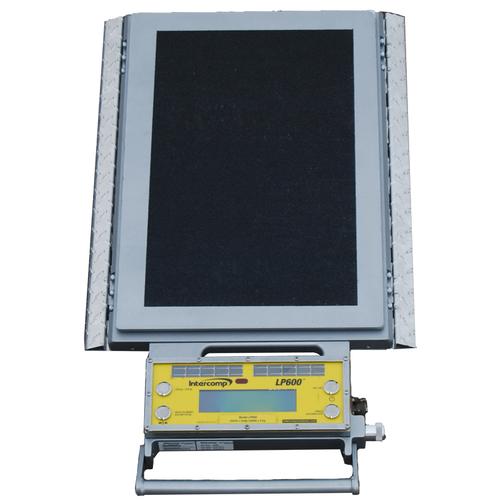

Low-Profile, Lightweight, Digital, Self-Contained Wheel Load Scale! This scale is designed to maximize legal payloads with concern for violations and reduction of maintenance due to overload stress on equipment. Weighing a mere 49lbs/22kg and only 1.5"/38mm high, this sturdy, all aluminum, fully electronic, self-contained wheel load scale is capable of weighing loads up to 30,000lbs/15,000kg with an accuracy of +/-1%. The scale is fully battery operated and only requires infrequent recharging from a 12, 110 or 220 volt source. Charger not included. Compact, hand-held infrared remote control (included) enables the user to control all functions of the scale from a standing position. Jumbo size, 1"/25mm LCD display is readable from 25 feet/8 meters and automatically illuminates during use in low light conditions. It is possible to connect up to 32 of these scales to obtain axle weights and you can view wheel weight or total weight from the interconnected scales at any location.
PT300 Wheel Load Scales
Self Contained Digital Wheel Load Scale System for Portable Weighing.
Includes: Four Scales with 20mA Output, Interconnecting Cable, Charging Cable and Carrying Case. Specify the appropriate battery charger for your application.
Model
Description
Capacity/Graduation
Weight
170122
Low Profile Wheel Load Scale w/IR Control
30,000 X 50 lb/15,000 X 20 kg
49 lb
170000
Low Profile Wheel Load Scale w/IR Control
20,000 X 100 lb/10,000 X 50 kg
49 lb
170001*
Low Profile Wheel Load Scale w/IR Control
20,000 X 50 lb/10,000 x 20 kg
49 lb
170002
Low Profile Wheel Load Scale w/IR Control
20,000 x 20 lb/10,000 x 10 kg
49 lb
170003
Low Profile Wheel Load Scale w/IR Control
20,000 x 10 lb/10,000 x 5 kg
49 lb
170004
Low Profile Wheel Load Scale w/IR Control
10,000 x 5 lb/5,000 x 2 kg
49 lb
170005
Low Profile Wheel Load Scale w/IR Control
5,000 x 5 lb/2,500 x 2 kg
49 lb
170006
Pad Only -No Display- Analog Output (8 Pin Connector)
20,000 lb/ 10,000 kg
49 lb
170122-R
Low Profile Wheel Load Scale w/IR Control & Ramps
30,000 X 50 lb/15,000 X 20 kg
49 lb
170000-R
Low Profile Wheel Load Scale w/IR Control & Ramps
20,000 X 100 lb/10,000 X 50 kg
49 lb
170001-R*
Low Profile Wheel Load Scale w/IR Control & Ramps
20,000 X 50 lb/10,000 x 20 kg
49 lb
170002-R
Low Profile Wheel Load Scale w/IR Control & Ramps
20,000 x 20 lb/10,000 x 10 kg
49 lb
170003-R
Low Profile Wheel Load Scale w/IR Control & Ramps
20,000 x 10 lb/10,000 x 5 kg
49 lb
170004-R
Low Profile Wheel Load Scale w/IR Control & Ramps
10,000 x 5 lb/5,000 x 2 kg
49 lb
170005-R
Low Profile Wheel Load Scale w/IR Control & Ramps
5,000 x 5 lb/2,500 x 2 kg
49 lb
170006-R
Pad Only & Ramps
20,000 lb/ 10,000 kg
49 lb
| $3,595.50 |
|
||||||||||||||||||||||||
)
