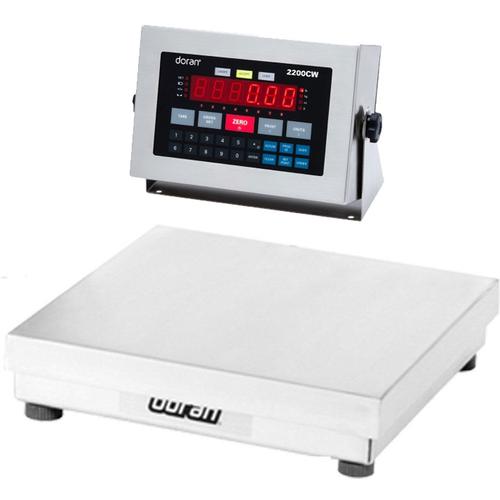

Doran 22050CW/15 Legal For Trade Checkweighing 15 x 15 Scale 50 x 0.01 lb
Doran Scales
Why settle for less - when you can have it all with Doran’s new 2200CW Checkweigher! With a built-in 250 product database, versatile communications, powerful control options, and outstanding PC support software, the 2200CW has it all in a simple to use, technologically advanced and extremely rugged package. more ...
Scales > Industrial Scales > Bench Scales
Doran 22050CW/15 Legal For Trade Checkweighing 15 x 15 Scale  50 x 0.01 lb


Price: $1,705.50


Available to Ship







Overview

Why settle for less - when you can have it all with Doran’s new 2200CW Checkweigher! With a built-in 250 product database, versatile communications, powerful control options, and outstanding PC support software, the 2200CW has it all in a simple to use, technologically advanced and extremely rugged package.
Free Ground Shipping within the 48 continental US States

Manufature: Doran
SKU: 22050CW/15
Weight: 25.00 lb

  Features

Expansive 250 Product ID Database
Store, recall, and weigh with the 2200CW built-in database! This internal database will store up to 250 Checkweigh Tolerances, Tare Weights, Accumulation and Counter totals and a description field by a six digit Product ID. Recalling a product from the database is as simple as pressing the PROD button and entering the product ID.

Adding new products or maintaining existing products are quickly accomplished through the keypad or by using Doran’s innovative CheckWay Windows™ compatible software. The data is password protected to ensure that your products are checkweighed properly every time.

Handwritten production records to track weighments or accumulated weight are a thing of the past with the 2200CW. The counter memory stores the number of weighments. Recalling the accumulated weight at the end of a pallet load of product or the end of the shift is as simple as pushing a button.

Versatile Communication Options
Connect with any device or computer using the two standard RS-232 ports, or with the optional Wired Ethernet, Wireless Ethernet, Modbus/TCP, USB, 4-20mA, RS-485 or Fiber Optic. Communicate with flexible and user definable data strings to include standard scale information, product ID, and product description. This allows for an easy interface with barcode printers, data collection systems or other remote devices.

Powerful Control Options
Control your process with eight standard setpoint outputs and two setpoint inputs. The optional relays can be mounted inside the enclosure to provide a turnkey, washdown and compact solution. Use board level outputs and relays to control lights, valves, or any other process control based upon scale weight or checkweigh status.

Guardian Harsh Environment Protection System
Engineered to thrive in the harshest of working environments, the Model 2200CW features the Guardian Harsh Environment Protection System. All the components of this system act as your defense against the damaging effects of shock, water, abuse, and other environmental factors that can cause costly repairs and production downtime

1000% Overload Base
No...thats not a typo! Our unique "Quad-Spring" design protects the sensitive load cell from shock and overload damage. Protected to a maximum of 10 times the base load rating sets the new industry standard - a feature only available from Doran

Guardian Harsh Environment Protection System

Engineered to thrive in the harshest of working environments, the Model 2200CW features the Guardian Harsh Environment Protection System. All the components of this system act as your defense against the damaging effects of shock, water, abuse, and other environmental factors that can cause costly repairs and production downtime.

Guardian Keypad
Shielding the display elements and the scale electronics from water and puncture damage, the Guardian touch panel is four times thicker than the competition. The responsive keypad is bonded to a metal plate and is secured to the inside of the case with adhesive and bolts.

Quad Spring Base
1000% overload protection! Load cell damage caused by shock and overload has been eliminated with the unique “Quad Spring” base design. Shock overload is transfered to the frame of the scale base, protecting the sensitive load cell.

Innovative Gasket Design
Doran’s gasket design seals out any moisture, even from a direct hit with a high pressure hose. Combining a rigid metal reinforcement with highly flexible Silicone material results in a gasket that has remarkeable sealing characteristics without deforming.

Superior Washdown Safe Construction
Heavy duty 304 Stainless Steel construction and NEMA 4X classification for washdown protection. The case features a unique cover to backplate mating system that prevents overtightening of the bolts or deforming of the backplate - two major causes of leakage and moisture damage.

  Specifications

Model 22002CW/88* 22005CW/88 22010CW/88 22025CW/88 22002CW* 22005CW 22010CW 22025CW 2205CW0 22050CW/12 22100CW/12 22050CW/15 22100CW/15 22200CW/15
Capacity x Readability lb 2 x 0.0005 5 x 0.001 10 x 0.002 25 x 0.005 2 x 0.0005 5 x 0.001 10 x 0.002 25 x 0.005 50 x 0.01 50 x 0.01 100 x 0.02 50 x 0.01 100 x 0.02 200 x 0.05
kg 0.9 x 0.2g 2.3 x 0.5g 4.5 x 1g 11.3 x 2g 0.9 x 0.2g 2.3 x 0.5g 4.5 x 1g 11.3 x 2g 22.7 x 5g 22.7 x 5g 45 x 10g 22.7 x 5g 45 x 10g 91 x 20g
oz 35 x 0.01 80 x 0.02 160 x 0.05 400 x 0.1 35 x 0.01 80 x 0.02 160 x 0.05 400 x 0.1 800 x 0.2 800 x 0.2 1600 x 0.5 800 x 0.2 1600 x 0.5 3200 x 1
Platter Size 8" x 8" 10" x 10" 12" x 12" 15" x 15"
Legal for Trade NOT
Legal for Trade
Indicator: CC# 06-101 NTEP Class III - Base: CC# 97-097A1 NTEP Class III
NOT
Legal for Trade
Indicator: CC# AM-5617 Canada Class III - Base: CC# AM-5241 Canada Class III
NTEP Resolution NOT
Legal for Trade
5000d 5000d 5000d NOT
Legal for Trade
5000d 5000d 5000d 5000d 5000d 5000d 5000d 5000d 5000d
Outputs
  • Two configurable Bi-directional RS-232 Serial Ports.
  • Eight Digital Outputs
Column 14 inch Two programmable inputs
Input Two programmable inputs
Washdown NEMA4 x
Display 6 digit red LED 0.56" High
Controls: TARE, GROSS/NET, ZERO, PRINT, UNITS, ACCUM, CLEAR, PROD ID, SET POINT, OVER, UNDER, ENTER, Decimal Point, and Numeric Keypad 0-9
Indicators NET, ZERO, BATT, MOT, OVER, UNDER, and ACCEPT
Units lb, oz, kg, g or lb & oz
Power 115 VAC, 50/60 Hz (230 VAC Optional) - Internal Rechargeable Battery (Optional)
Construction 304 Stainless Steel (16 Gauge)
Warranty Two Year Parts & Labor
* Not Legal for Trade
