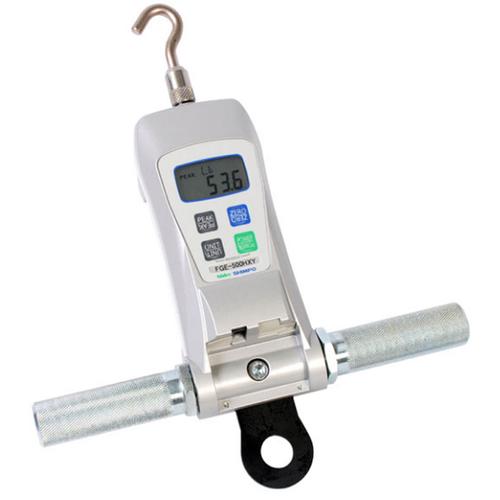

The Shimpo FGE-500HXY Capacity Digital Force Gauge measures both push and pull forces up to 500 lbs / 250 kg. Two knurled steel handles are provided for hand operation and a hanger is included which enables each gauge to be used as a scale.

Simple one button adjustment changes units of measure, while pressing the peak button quickly produces the highest recorded value during the test. The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable the FGE-X to excel in both compression and tension applications in any direction.

Typical applications include wallboard, wire pull, wire crimps, trigger pull, brake pedal, aerospace ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more.

Features

• 1000 Hz Sample Rate provides faster sampling producing better resolution and more accurate results
• Ideal for strict tolerances with its high accuracy +/-0.2% F.S.
• Measure and record compression and tension tests. Permits true “push-pull” testing
• 180° Reversible display and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
• 1 million operation load cell with superior overload protection provides a long-life, damage free product
• High-capacity rugged, ergonomic die cast aluminum construction allows usage on production floor
• Variable display response rate aids viewing of readings
• Real Time or Peak hold mode easily selectable with a single button push
• Flexible user preference with one button selection of engineering units
• Field calibration through keypad eliminates down time
• Dual power capable with rechargeable battery or AC
• CE Mark & RoHS Approval

Complete Kit
The FGE-HXY is supplied as a complete kit including AC adapter/charger, carrying case, 2 handles, hanger, metric thread to inch adapter, calibration cert and attachments (flathead, hook, chisel, notched head, cone head, extension rod) in a foam fitted plastic carrying case.

Model	FGE-0.5XY	FGE-1XY	FGE-2XY	FGE-5XY	FGE-10XY	FGE-20XY	FGE-50XY	FGE-100XY	FGE-200XY	FGE-200XY
Capacity X Readability	0.5 x 0.001 lb	1 x 0.001 lb	2 x 0.001 lb	5 x 0.001 lb	10 x 0.01 lb	20 x 0.01 lb	50 x 0.01 lb	100 x 0.1 lb	200 x 0.1 lb	500 x 0.1 lb
	200 x 0.1 g	500 x 0.1 g	1000 x 1 g	2 x 0.001 Kg	5 x 0.001 Kg	10 x 0.01 Kg	20 x 0.01 Kg	50 x 0.01 Kg	100 x 0.1 Kg	250 x 0.1 Kg
	2 x 0.001 N	5 x 0.001 N	10 x 0.01 N	20 x 0.01 N	50 x 0.01 N	100 x 0.1 N	200 x 0.1 N	500 x 0.1 N	1000 x 1 N	2500 x 1 N
	8 x 0.01 oz	16 x 0.01 oz	32 x 0.01 oz	-	-	-	-	-	-	-
Thread	M4	M4	M6	M6	M6	M6	M6	M6	M6	M10
Accuracy	±0.2% F.S. @ 73°F (23°C)
Selectable Units	oz, g, kg, N and lb. (Depending on Range)
Overload Capacity	200% of F.S. (200 lb and up: 150% F.S.)
Data Sampling Rate	1000 Hz
Display	4-Digit LCD, 0.5” (12 mm) high, Units 0.29” (7 mm). Reversible. Minus sign for tension
Display Update Rate	0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Power	Rechargeable Ni-MH battery or universal AC adapter/charger (100 - 240 VAC, 50/60 Hz)
Auto Power Shut-Off	Yes (not active if adapter/charge is in use)
Battery Charge	Approximately 12 hours continuous use per full charge
Recharge Time	Approximately 18 hours (when fully discharged)
Temperature Limits	32 - 104°F (0 - 40°C)
Dimensions	5.8 x 3 x 1.5” (147 x 75 x 38 mm)
Product Weight	1 lb								1.1 lb	2 lb
Package Weight	2.25 lb		2.4 lb						2.75 lb	7.45 lb
Certification	CE, RoHS
Warranty	1 year
Included Accessories	AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, metric to inch thread adapter, extension rod
		FGE-500HXY AC adapter/charger, carrying case, 2 handles, hanger, metric thread to inch adapter, calibration cert and attachments (flathead, hook, chisel, notched head, cone head, extension rod) in a foam fitted plastic carrying case
