Virtui2 The PC-Based HMI for iQUBE2©

VIRTUi2 is the second generation of virtual indicators, providing the functionality of a basic weight indicator and placing it right on your computer screen. This PC-based solution is NTEP Certified and enables users to monitor cell diagnostics, set next calibration alerts, send email alerts, configure gross/net print formats as well as remotely view load cell status via a web browser when used with iQUBE2.

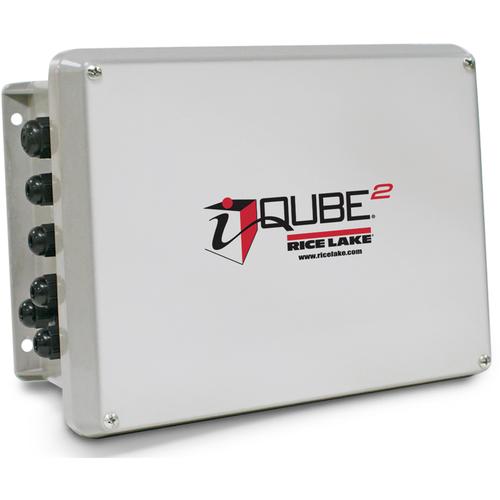

Virtui2 is a Windows®-based desktop application that works with iQUBE2 to replicate simple indicator functionality ideal for system integrators and OEMs wanting to provide a PC-based solution. Load cells are individually monitored and calibrated, making setup easy.

• Web browser-based iQUBE2® cell status
• Up to four scale systems and one total scale

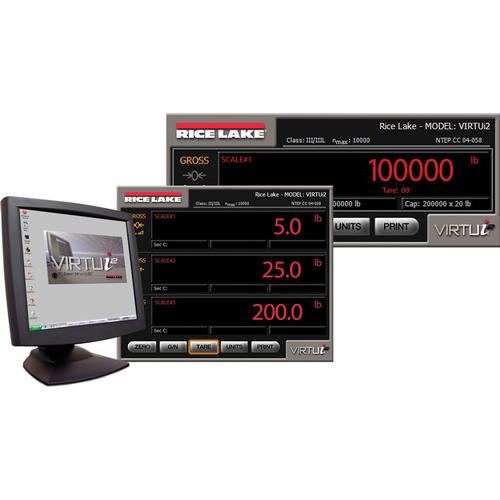

• Virtual front panel consists of display and five button keypad
• Primary/secondary units configuration (lb, kg, short tons, metric tons, none)

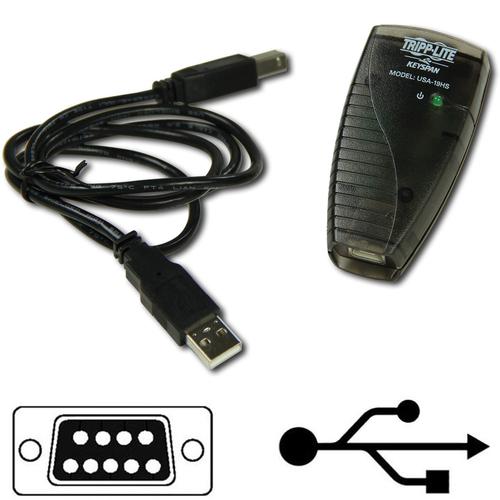

• RS-232 communications at up to 460 Kbps
• Electronic Data Processing (EDP) port over RS-232 and TCP/IP
• Printer port for output-only, simplex communications
• Two print formats
• Provides iQUBE2 configuration screen and iQUBE2 digital I/O configuration
• Supports iQUBE2 diagnostics with configurable error reporting
• Peak weight history
• Recalibration notification
• Provides local and remote reporting of diagnostics and error conditions
• Concentrated load capacity (CLC)
• Section capacity
