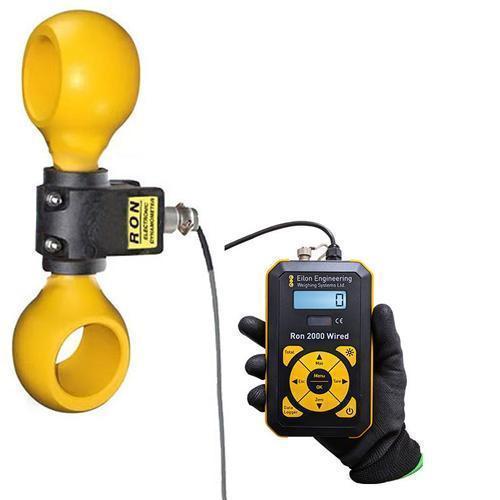

OverviewThe highly portable Ron 2000 is an extremely small and lightweight wired dynamometer especially suited for low headroom or applications requiring high portability. Featuring extremely long battery life , the Ron 2000 can operate up to 2000 hours on AA disposable batteries.
|
The highly portable Ron 2000 is an extremely small and lightweight wired dynamometer especially suited for low headroom or applications requiring high portability.
Featuring extremely long battery life , the Ron 2000 can operate up to 2000 hours on AA disposable batteries. Made from aerospace steel, the Ron 2000 includes fatigue rated load cells for increased safety. Unique in its design, the Ron 2000 features 90 degrees between shackle holes for increasing safety and accuracy by reducing bending of the load cell. The Ron 2000 features high accuracy (0.1% of full scale). Often used in offshore, wind turbines maintenance and other heavy industries. Its durable and shock absorbing design makes it especially suitable for harsh conditions. The Ron 2000 is available with advanced options like data loggers, serial/USB outputs or wired/wireless communication with PCs, printers and additional displays.
Safety factor: 5:1
Accuracy: 0.1% of full range.
Calibration: User calibration. Initial factory calibration, fully traceable (certified).
Load Cell Material: high-strength, aerospace quality, alloy steel, polyurethane coated.
Proof Load: Each system proof-loaded to 200% of capacity (certified) up to a test force of 400t.
Display: 6 digits, ½" (12mm) liquid crystal display. Overload warnings (100%/130%), low battery indication, Gross/Net. Refresh rate 1Hz.
Sampling Rate: 200 per second.
Functions: Zero, Tare, Battery level indication, Low battery warning, Max. (peak hold).
Units: User selectable units (metric tons, short tons, kgs., Ibs., Newtons, Deca-Newtons, Kilo-Newtons.
Indicator/Load Cell Housing: High quality ABS.
Temperature Range:
Load cell: -15°F to +175°F (-25°C to +80°C)
Indicator: -4°F to +158°F (-20°C to +70°C)
Environmental: IP65 (Optional IP67 Load Cell).
OPTIONS - Please Call 718-336-5900 for more Info
Model | Capacity in Metric Tons | Capacity x Readability | Type | Weight | Matching anchor shackle size | Carrying Case | Cable length |
---|---|---|---|---|---|---|---|
Ron2000S005 | 0.5t | 1000 x 0.2 lb | Wired | 6.6 LB | 1/2 in- 7/16 in - 3/8 in | Optional | 16ft / 5m |
Ron2000S01 | 1t | 2000 x 0.5 lb | Wired | 6.6 LB | 1/2 in- 7/16 in - 3/8 in | Optional | 16ft / 5m |
Ron2000S02 | 2t | 4000 x 1 lb | Wired | 6.6 LB | 1/2 in- 7/16 in - 3/8 in | Optional | 16ft / 5m |
Ron2000S03 | 3t | 6000 x 1 lb | Wired | 6.6 LB | 5/8 in - 3/4 in | Optional | 16ft / 5m |
Ron2000S05 | 5t | 10000 x 2 lb | Wired | 8.8 LB | 3/4 in - 5/8 in | Optional | 16ft / 5m |
Ron2000S10 | 10t | 20000 x 5 lb | Wired | 8.8 LB | 1 1/4 in- 1 1/8 in - 1 in | Optional | 16ft / 5m |
Ron2000S12 | 12.5t | 25000 x 5 lb | Wired | 8.8 LB | 1 1/4 in- 1 1/8 in - 1 in | Optional | 16ft / 5m |
Ron2000S15 | 15t | 30000 x 5 lb | Wired | 13.2 LB | 1 3/8 in - 1 1/4 in - 1 1/8 in | Optional | 16ft / 5m |
Ron2000S20 | 20t | 40000 x 10 lb | Wired | 13.2 LB | 1 3/8 in | Optional | 16ft / 5m |
Ron2000S25 | 25t | 50000 x 10 lb | Wired | 17.6 LB | 1 1/2 in | Optional | 16ft / 5m |
Ron2000S30 | 30t | 60000 x 10 lb | Wired | 17.6 LB | 1 1/2 in | Optional | 16ft / 5m |
Ron2000S40 | 40t | 80000 x 20 lb | Wired | 28.6 LB | 1 in - 1 3/4 in | Optional | 32ft / 10m |
Ron2000S55 | 55t | 110000 x 20 lb | Wired | 28.6 LB | 2 in | Optional | 32ft / 10m |
Ron2000S85 | 85t | 170000 x 50 lb | Wired | 48.4 LB | 2 1/2 in | Included | 32ft / 10m |
Ron2000S100 | 100t | 200000 x 50 lb | Wired | 72.6 LB | Widebody 125t | Included | 49ft / 15m |
Ron2000S125 | 125t | 250000 x 50 lb | Wired | 77 LB | Widebody 125t | Included | 49ft / 15m |
Ron2000S150 | 150t | 300000 x 50 lb | Wired | 151.8 LB | Widebody 200t | Included | 49ft / 15m |
Ron2000S200 | 200t | 400000 x 100 lb | Wired | 151.8 LB | Widebody 200t | Included | 49ft / 15m |
Ron2000S250 | 250t | 500000 x 100 lb | Wired | 330 LB | Widebody 250t or 300t | Included | 49ft / 15m |
Ron2000S300 | 300t | 600000 x 100 lb | Wired | 330 LB | Widebody 300t | Included | 49ft / 15m |
|
