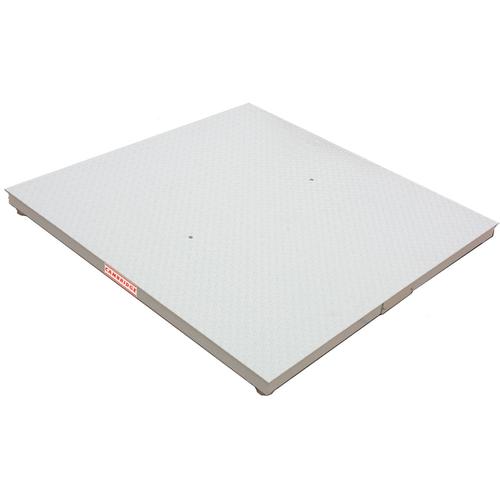

Cambridge MODEL AL660 Aluminum Low Profile Floor Scales Cambridge Scales
Authorized Dealer
STANDARD FEATURES The AL660 Alulite Series Aluminum Low Profile Series standard features include 1 part in 5,000 accuracy, structural tubular aluminum construction, aluminum diamond tread deck plate, 150% overload protection, 100% end loading capacity...
Cambridge MODEL SS660 Stainless-Stee Low Profile Floor Scales
Base Only Indicator Sold Separately
Legal For Trade

Specifications Chart

STANDARD FEATURES

The AL660 Alulite Series Aluminum Low Profile Series standard features include 1 part in 5,000 accuracy, structural tubular aluminum construction, aluminum diamond tread deck plate, 150% overload protection, 100% end loading capacity, low profile design allows easy incline ramping, 20 foot shielded indicator cable, shock load protection, four internally mounted shear beam load cells, is NTEP Certified-5,000 Division, class III/IIIL, is environmentally protected, and is IP 67 Water Resistant rated.

    Options
  • Remote junction box
  • Remote mountable NEMA 4 junction box and 10 Sealtite conduit for wash down applications. (Standard on Model SS660 Series)

  • Fork lift package
  • All of the standard 660 features but with added fork lift skids for those applications requiring convenient and rapid transporting of the scale. Only three inches high, this scale maintains its low profile design with built in rails that permit easy pick up and transportation by most commonly used fork lifts. Also featured are heavy steel bumpers mounted on all four corners to protect the load cells and leveling feet from fork lift blades.

  • Pit installation kit
  • function box permitting easy access for calibration and corner adjustments. Pit spacer brackets are also included to maintain accurate alignment of scale in pit applications. For an unbeatable combination, match this scale with our pit form and one of our many indicators and you?ve got all you need for all your weighing needs.

ACCESSORIES
  • Easy incline ramps
  • Bumper guards
  • Pit forms
  • Indicator/Printer stands
  • Locator brackets

Other Options - Please call (800) 832-0055 for more info

Remote Stainless Steel "J" Box Remote S.S. NEMA IV Junction Box with 10 F.T. Sealtite flexible condut with two straight connectors
Cambridge MODEL AL660 Aluminum Low Profile Floor Scales

Price From: $1642.50



Select Indicator (Must be added with scale)
Cambridge (SSCSW-10AT) NTEP Stainless Steel , Add $535.50
Cambridge (SSCSW-10AT-B) NTEP Stainless Steel & Battery , Add $670.50
Cambridge (CSW-15AT) NTEP Wireless , Add $895.50
Cambridge (CSW-15AT-B) NTEP Wireless & Battery , Add $1035.00
Cambridge (CSW-20AT) NTEP Numeric Keypad , Add $598.50
Cambridge (CSW-20AT-B) NTEP Numeric Keypad & Battery , Add $742.50
Cambridge (SSCSW-20AT) NTEP Stainless Steel Numeric Keypad , Add $787.50
Cambridge (SSCSW-20AT-B) NTEPStainless Steel Numeric Keypad & Battery , Add $895.50

Options Must be added with scale

(Some Factory Installed)

Indicator Column\Stand
Cambridge -50481 Attached Stainless-Steel Indicator 48 inch  Column with Indicator Mounting Plate
Cambridge -50481 Attached Stainless-Steel Indicator 48 inch Column with Indicator Mounting Plate, add $697.50
Ramps
Cambridge AL660RP2436 Model AL660 Series Alulite Aluminum Low Profile Ramp 24 x 36 x 3 / 2,500 x 0.2lb
Cambridge AL660RP2436 Model AL660 Series Alulite Aluminum Low Profile Ramp 24 x 36 x 3 / 2,500 x 0.2lb, add $688.00
Cambridge AL660RP3036 Model AL660 Series Alulite Aluminum Low Profile Ramp 30 x 36 x 3 / 2,500 x 0.2lb
Cambridge AL660RP3036 Model AL660 Series Alulite Aluminum Low Profile Ramp 30 x 36 x 3 / 2,500 x 0.2lb, add $803.00
Cambridge AL660RP3636 Model AL660 Series Alulite Aluminum Low Profile Ramp 36 x 36 x 3 / 5000 x 1lb
Cambridge AL660RP3636 Model AL660 Series Alulite Aluminum Low Profile Ramp 36 x 36 x 3 / 5000 x 1lb, add $918.00
Cambridge AL660RP4836 Model AL660 Series Alulite Aluminum Low Profile Ramp 48 x 36 x 3 / 5000 x 1lb
Cambridge AL660RP4836 Model AL660 Series Alulite Aluminum Low Profile Ramp 48 x 36 x 3 / 5000 x 1lb, add $1,035.00
Cambridge AL660RP4848 Model AL660 Series Alulite Aluminum Low Profile Ramp 48 x 48 x 3 / 5000 x 1lb
Cambridge AL660RP4848 Model AL660 Series Alulite Aluminum Low Profile Ramp 48 x 48 x 3 / 5000 x 1lb, add $1,380.00
Cambridge AL660RP6036 Model AL660 Series Alulite Aluminum Low Profile Ramp 60 x 36 x 3 / 5000 x 1lb
Cambridge AL660RP6036 Model AL660 Series Alulite Aluminum Low Profile Ramp 60 x 36 x 3 / 5000 x 1lb, add $1,380.00
Cambridge AL660RP6048 Model AL660 Series Alulite Aluminum Low Profile Ramp 60 x 48 x 3 / 5000 x 1lb
Cambridge AL660RP6048 Model AL660 Series Alulite Aluminum Low Profile Ramp 60 x 48 x 3 / 5000 x 1lb, add $1,612.00
Pit Form
Cambridge 3862-1000-00 - Pit Form for 660 Series - 24x24x3
Pit Form for 660 Series - 24x24x3, add $499.50
Cambridge 3862-1001-00 - Pit Form for 660 Series - 30x30x3
Pit Form for 660 Series - 30x30x3, add $522.00
Cambridge 3862-1002-00 - Pit Form for 660 Series - 36x36x3
Pit Form for 660 Series - 36x36x3, add $544.50
Cambridge 3862-1003-00 - Pit Form for 660 Series - 48x48x3
Pit Form for 660 Series - 48x48x3, add $544.50
Cambridge 3862-1004-00 - Pit Form for 660 Series - 48x60x3
Pit Form for 660 Series - 48x60x3, add $661.50
Cambridge 3862-1005-00 - Pit Form for 660 Series - 48x72x3
Pit Form for 660 Series - 48x72x3, add $702.00
Cambridge 3862-1006-00 - Pit Form for 660 Series - 60x60x3
Pit Form for 660 Series - 60x60x3, add $702.00

Single Side Bumper Guard
Cambridge 3863-1000-00 - Bumper Guard Single Sided for 660 Series - 24x3
Bumper Guard Single Sided for 660 Series - 24x3, add $99.00
Cambridge 3863-1001-00 - Bumper Guard Single Sided for 660 Series - 30x3
Bumper Guard Single Sided for 660 Series - 30x3, add $103.50
Cambridge 3863-1002-00 - Bumper Guard Single Sided for 660 Series - 36x3
Bumper Guard Single Sided for 660 Series - 36x3, add $117.00
Cambridge 3863-1003-00 - Bumper Guard Single Sided for 660 Series - 48x3
Bumper Guard Single Sided for 660 Series - 48x3, add $130.50
Cambridge 3863-1004-00 - Bumper Guard Single Sided for 660 Series - 48x4
Bumper Guard Single Sided for 660 Series - 48x4, add $139.50
Cambridge 3863-1005-00 - Bumper Guard Single Sided for 660 Series - 60x3
Bumper Guard Single Sided for 660 Series - 60x3, add $153.00
4 Side Bumper Guard
Cambridge 3863-1026-00 - Bumper Guard Surround for 660 Series - 24x24x3
Cambridge 3863-1026-00 - Bumper Guard Surround for 660 Series - 24x24x3, add $499.50
Cambridge 3863-1027-00 - Bumper Guard Surround for 660 Series - 30x30x3
Cambridge 3863-1027-00 - Bumper Guard Surround for 660 Series - 30x30x3, add $522.00
Cambridge 3863-1028-00 - Bumper Guard Surround for 660 Series - 36x36x3
Cambridge 3863-1028-00 - Bumper Guard Surround for 660 Series - 36x36x3, add $549.00
Cambridge 3863-1029-00 - Bumper Guard Surround for 660 Series - 48x48x3
Cambridge 3863-1029-00 - Bumper Guard Surround for 660 Series - 48x48x3, add $616.50
Cambridge 3863-1031-00 - Bumper Guard Surround for 660 Series - 48x60x3
Cambridge 3863-1031-00 - Bumper Guard Surround for 660 Series - 48x60x3, add $661.50
Cambridge 3863-1033-00 - Bumper Guard Surround for 660 Series - 48x72x3
Cambridge 3863-1033-00 - Bumper Guard Surround for 660 Series - 48x72x3, add $706.50
Cambridge 3863-1035-00 - Bumper Guard Surround for 660 Series - 60x60x3
Cambridge 3863-1035-00 - Bumper Guard Surround for 660 Series - 60x60x3, add $706.50

Cambridge Legal For Trade MODEL SS660-PT-R Polyethylene Top Stainless-Steel Low Profile Floor Scales

Model Size (Inch) Capacity x Readability Legal For Trade Price Base Only
AL66024241 24 x 24 x 3 1,000 x 0.1 lb NO - $1,642.50
buy now
AL66024242 24 x 24 x 3 2,500 x 0.2 lb NO - $1,642.50
buy now
AL66030301 30 x 30 x 3 1,000 x 0.1 lb NO - $1,975.50
buy now
AL66030302 30 x 30 x 3 2,500 x 0.2 lb NO - $1,975.50
buy now
AL66036361 36 x 36 x 3 1,000 x 0.1 lb NO - $2,065.50
buy now
AL66036362 36 x 36 x 3 2,500 x 0.2 lb NO - $2,065.50
buy now
AL66036365 36 x 36 x 3 5,000 x 0.5 lb NO - $2,065.50
buy now
AL66048481 48 x 48 x 3 1,000 x 0.1 lb NO - $2,587.50
buy now
AL66048482 48 x 48 x 3 2,500 x 0.2 lb NO - $2,587.50
buy now
AL66048485 48 x 48 x 3 5,000 x 0.5 lb #96-157A1 5,000 x 1 lb $2,587.50
buy now
AL66048605 48 x 60 x 3 5,000 x 0.5 lb #96-157A1 5,000 x 1 lb $2,992.50
buy now
AL66048725 48 x 72 x 3 5,000 x 0.5 lb #96-157A1 5,000 x 1 lb $3,325.50
buy now
AL66060605 60 x 60 x 3 5,000 x 0.5 lb #96-157A1 5,000 x 1 lb $3,325.50
buy now
