Laboratory Equipment > Moisture Analyzers > Moisture Analyzers | ||||||
|
||||||

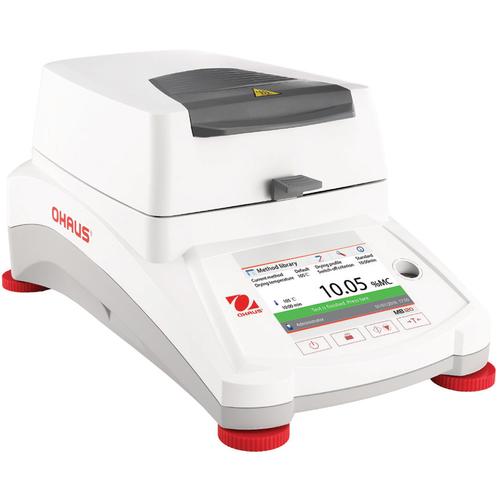

OverviewThe MB120 delivers functionality and precision that you can rely on, and is easy to operate and clean—you can test more samples in less time! Advanced features such as a temperature guide help to analyze optimum drying temperature, and methods and results storage allows statistical analysis of measurements. Three levels of user management ensure data safety—set up and lock temperature settings and method parameters with administrator access.
|
Moisture Analysis Made Simple—and Powerful.
The MB120 delivers functionality and precision that you can rely on, and is easy to operate and clean—you can test more samples in less time! Advanced features such as a temperature guide help to analyze optimum drying temperature, and methods and results storage allows statistical analysis of measurements. Three levels of user management ensure data safety—set up and lock temperature settings and method parameters with administrator access. Additional Features—MB120
ABS top housing, stainless steel pan support, in-use cover, user-guide, 13 operational languages
Advanced Functionality
Test a wide variety of materials for a range of applications with MB120.
Testing Made Simple The MB Series features a wide, bright touchscreen display and intuitive menu navigation for fast, accurate moisture analysis.
Exceptional Precision
The MB120 provides precise results for more confident testing.
Compliance
Standard: Minimal overshoot while achieving temperatures quickly
Ramp: Controlled ramping to temperatures
Step: Set three temperatures at three time intervals
Pan Handler 30246947
In-Use-Cover30284478
Scoop n30284477
Temperature Calibration Kit 11113857
Anti-Theft Device 80850043
Aluminum Pan (set of 80) 80850086
Glass Fiber Pads(set of 200) 80850087
Cage, Sample 80252477
Reusable Pan Set of 3, 7mm High 80252478
Reusable Pan Set of 3, 14mm High 80252479
SF40A Impact Printer 30064203
Model | MB90 | MB120 |
---|---|---|
Price |
||
Capacity X Readability (g) | 90 x 0.001 | 120 x 0.001 |
Capacity X Readability (%) | 0.01% | 0.01% |
Repeatability (Std. Dev.) (g) | 0.18% (3 g sample) 0.02% (10 g sample) |
0.05% (3 g sample) 0.015% (10 g sample) |
Moisture Range | 0.01% to 100% (0.01% to 1000% for regain mode |
0.01% to 100% (0.01% to 1000% for regain mode) |
Output | RS232, USB Host, USB Device | RS232, USB Host, USB Device |
Heating Element | Halogen | Halogen |
Temperature Range | 40–200 °C | 40–230 °C |
Power | 120 or 240 VAC 50/60 Hz | 120 or 240 VAC 50/60 Hz |
Operating Temperature Range | 50–104 °F/10–40 °C | 50–104 °F/10–40 °C |
Display Type | 4.3 in/109 mm, QVGA, TFT touch screen | 4.3 in/109 mm, QVGA, TFT touch screen/td> |
Display Results | %moisture, %solids, %regain, time, temperature, weight, method name, drying curve and statistics | %moisture, %solids, %regain, time, temperature, weight, method name, drying curve and statistics |
Pan Size | 3.5 in/90 mm | 3.5 in/90 mm |
Dimensions (W × H × D) | 8.3 × 7.7 × 14.0 in/211 × 180 × 355 mm | 8.3 × 7.7 × 14.0 in/211 × 180 × 355 mm |
Net Weight | 11.5 lb/5.23 kg | 11.5 lb/5.23 kg |
Shipping Weight | 18.4 lb/8.35 kg | 18.4 lb/8.35 kg |
|
