| Mark 10 Series 3i Digital Force / Torque Gauge |
Authorized Dealer |
| The 3i digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors. With exclusive Plug & TestTM technology, all calibration and configuration data is saved within the sensor’s smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with the advanced 5i force / torque indicator
|
| Force Measurement >> Mark-10 |
The 3i digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors (see below). With exclusive Plug & TestTM technology, all calibration and configuration data is saved within the sensor’s smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with the advanced 5i force / torque indicator
The 3i shares its menu structure and most specifications with Series 3 digital force gauges. The sampling rate is 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. The display also features an analog load bar for graphical representation of applied load, as well as set point indicators for pass-fail testing. USB output is provided for data collection purposes.
The gauges include MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation
Features
- Interchangeable force and torque sensors through Plug & TestTM technology
- High-speed 2,000 Hz sampling rate
- USB data output
- Ultra-compact size
- Large backlit graphic display
- Programmable set points with pass/fail indicators
- Live load bar graph with set point markers
- Peak readings and set points always displayed
- Configurable audio alarms and key tones
- Programmable auto-shutoff
- Configurable audio alarms and key tones
- Battery or AC operation
- MESURTM Lite data collection software included
- CE mark
Plug & Testtm Force Sensors
Mark 10 Plug & TestTM Force Sensor
for the Mark 10 5i and Mark 10 3i digital indicators

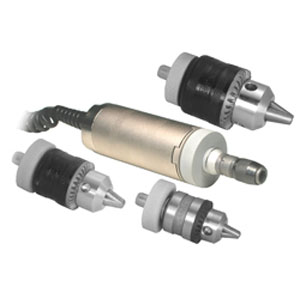

Mark 10 Plug & TestTM Torque Sensor
for the Mark 10 5i and Mark 10 3i digital indicators
| Model |
Model 5i |
Model 3i |
| Image |
 |
 |
| Price |
$973.75
|
$641.25
|
| Accuracy (FS ±1 digit + sensor): |
±0.1% |
±0.2% |
| Sensor password protection |
Yes |
No |
| Sampling Rate |
|
2,000 Hz, pulse response of 1/1,000 sec. minimum |
| Resolution |
1/2,000 / 1/1,000, depending on sensor |
1/1,000 |
| Outputs |
USB, RS-232, Mitutoyo, Analog |
USB |
| Programmable auto output via USB/RS-232: |
Yes |
No |
| MESURTM Lite software included: |
Yes |
Yes |
| Data output functionality |
By pressing DATA button, or requesting from a PC or other device |
By pressing DATA button, send current reading only. Cannot request externally |
| ASCII command set for external control (Gauge Control Language 2): |
Full command set |
None |
| Communication with MESURTMgauge and MESURTM Lite: |
Full communication |
Send current (single) readings only, cannot request from software |
| Communication with Series DC test stand controllers: |
Full communication, including PC control |
None |
| Data memory: |
1,000 readings, with output |
No |
| Data memory deletion: |
Any individual data point, or clear all |
N/A |
| Statistics calculations and output to PC: |
Yes |
N/A |
| Averaging mode: |
Yes |
No |
| External trigger mode |
Yes |
No |
| Analog load bar graph shown on display |
Yes |
Yes |
| Set points (for pass/fail indication): |
Yes, with high/low indicators, markers on analog load bar graph, and outputs |
Yes, with high/low indicators, markers on analog load bar graph, no outputs |
| Display: |
Graphic, backlit LCD, with backlight autooff |
Graphic, backlit LCD, with backlight autooff |
| Keypad password protection: |
Yes, for calibration and individual keys |
No |
| Peak readings always displayed: |
Yes |
Yes |
| Programmable audible tones (beeps): |
Yes |
Yes |
| Certificate of calibration: |
Yes, NIST-traceable |
Yes, NIST-traceable |
| Overload outputs |
Dedicated pins for tension and compression |
No |
| No. of units of measurement: |
5 |
3 |
| Reversible housing for reversed sensor orientation |
Yes |
No |

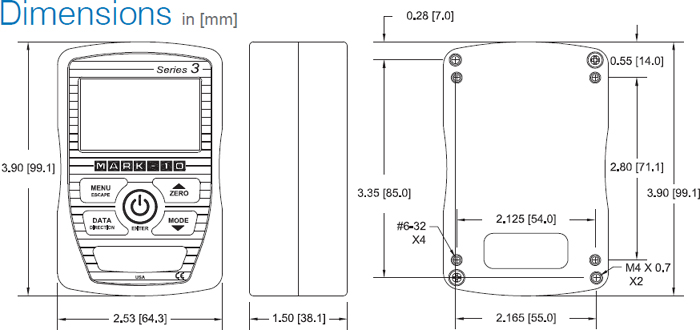

| Dimensions |
2.5 x 5.9 x 1.3 in. [64 x 150 x 33 mm] |
2.5 x 3.9 x 1.5 in. [64 x 99 x 38 mm] |
